RRP: £595.83
Your Price: N/A
Mfr. Part #: CMPHSP.W
Our Part #: KRIXHEMSP
Description

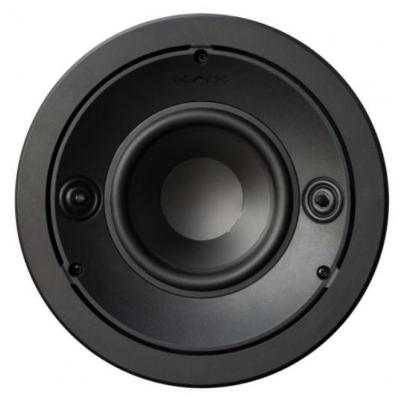

HEMISPHERIX SPS In Ceiling
Product Key Features
• Stereo sound from a single speaker
• Low profile 90mm mounting depth
• Suitable for indoor and outdoor use
• Stainless steel grille
Ideal for spaces where only one in-ceiling speaker is desired, the Hemispherix SPS (Single Point Stereo) accepts both left and right channels of audio for playback of high fidelity music from just one speaker. Belonging to the ‘Architectural Series’ of Krix concealed speakers, it features a magnetic, slim bezel stainless steel grille.
Product Overview
Single Point Stereo
Part of the Krix Architectural Series (AS), the Hemispherix SPS is a single point stereo speaker with dual tweeters and a dual voice coil woofer, providing unsurpassed performance in a very compact package. Two inputs allow both left and right channels to be connected for stereo sound from a single speaker, making it ideal for use in applications where installing two speakers is not desired or practical. The product is therefore perfect for use in hallways, bathrooms, eaves, under balconies and other tight spaces.
The Hemispherix SPS features a 125mm (5”) mid-bass driver with a durable polypropylene cone and an oversized, low distortion magnet system. Two high-grade 20mm (½”) ring radiator tweeters are mounted at opposing 20° angles, providing room-filling stereo sound.
Manufactured from weather resistant materials and featuring a rust resistant stainless steel grille, the Hemispherix SPS is suitable for installation outside under alfresco areas and in eaves, or inside the house in bathrooms, ensuites, or any other room. The semi-enclosed design means that the moving parts of the speaker are protected from dust and other ceiling contaminants while providing excellent bass performance for such a low profile speaker.
The paintable bezel grille, which is slim and attractively-styled, locks onto magnets at the front of the speaker for easy installation, delivering high fidelity sound with magical simplicity.
Product Specifications
• Frequency Range: 70Hz – 40kHz (in room response).
• Power Handling: 5 – 50 Watts RMS recommended amplifier power per input.
• Sensitivity: 85 dB (2.83V / 1m).
• Impedance: 2 x Nominal 8 Ohms (Minimum 6.3 Ohms).
• Configuration: Dual 2-Way.
• Enclosure Type: Semi-open back.
• Dimensions: 254mm diameter x 90mm mounting depth.
• Low Frequency Driver: 1 x 125mm (5”) polypropylene cone, 35mm dual voice coil.
• High Frequency Driver: 2 x 20mm (¾”) ring radiator.
• Input Terminals: 4 x Push type connectors.
• Cut-out Diameter: 207mm diameter recommended (template provided).
• Net Weight: 2kg each.
HEMISPHERIX SPS In Ceiling
Product Key Features
• Stereo sound from a single speaker
• Low profile 90mm mounting depth
• Suitable for indoor and outdoor use
• Stainless steel grille
Ideal for spaces where only one in-ceiling speaker is desired, the Hemispherix SPS (Single Point Stereo) accepts both left and right channels of audio for playback of high fidelity music from just one speaker. Belonging to the ‘Architectural Series’ of Krix concealed speakers, it features a magnetic, slim bezel stainless steel grille.
Product Overview
Single Point Stereo
Part of the Krix Architectural Series (AS), the Hemispherix SPS is a single point stereo speaker with dual tweeters and a dual voice coil woofer, providing unsurpassed performance in a very compact package. Two inputs allow both left and right channels to be connected for stereo sound from a single speaker, making it ideal for use in applications where installing two speakers is not desired or practical. The product is therefore perfect for use in hallways, bathrooms, eaves, under balconies and other tight spaces.
The Hemispherix SPS features a 125mm (5”) mid-bass driver with a durable polypropylene cone and an oversized, low distortion magnet system. Two high-grade 20mm (½”) ring radiator tweeters are mounted at opposing 20° angles, providing room-filling stereo sound.
Manufactured from weather resistant materials and featuring a rust resistant stainless steel grille, the Hemispherix SPS is suitable for installation outside under alfresco areas and in eaves, or inside the house in bathrooms, ensuites, or any other room. The semi-enclosed design means that the moving parts of the speaker are protected from dust and other ceiling contaminants while providing excellent bass performance for such a low profile speaker.
The paintable bezel grille, which is slim and attractively-styled, locks onto magnets at the front of the speaker for easy installation, delivering high fidelity sound with magical simplicity.
Product Specifications
• Frequency Range: 70Hz – 40kHz (in room response).
• Power Handling: 5 – 50 Watts RMS recommended amplifier power per input.
• Sensitivity: 85 dB (2.83V / 1m).
• Impedance: 2 x Nominal 8 Ohms (Minimum 6.3 Ohms).
• Configuration: Dual 2-Way.
• Enclosure Type: Semi-open back.
• Dimensions: 254mm diameter x 90mm mounting depth.
• Low Frequency Driver: 1 x 125mm (5”) polypropylene cone, 35mm dual voice coil.
• High Frequency Driver: 2 x 20mm (¾”) ring radiator.
• Input Terminals: 4 x Push type connectors.
• Cut-out Diameter: 207mm diameter recommended (template provided).
• Net Weight: 2kg each.
EAN # : 0793618031084
| Features | |
|---|---|
| Committed To Custom | Yes |
| RRP Per Unit | £500-£750 |
| Type | In-Ceiling |
| Application | Cinema/Multi-Room |
| Speaker Type | Single Stereo |
| Speaker Series | Concealed Audio |
| Speaker Size | 5 " |
| Bass/Mid Unit | 5" Polypropylene |
| Tweeter | 2 x 0.75" Ring Radiator |
| Frequency Response | 70Hz-40kHz |
| Impedance | 2 x 8 Ohms |
| Sensitivity | 85 dB |
| Recommended Amplifier Power | 5-50 Watts |
| Cut-Out-Size (Diameter) | 207 mm |
| Mounting Depth (assumes 13mm wall) | 90 mm |
| Quick Install | No |
| IP Rating | None |
| Colour | Black |
| Warranty | 5 Years |
