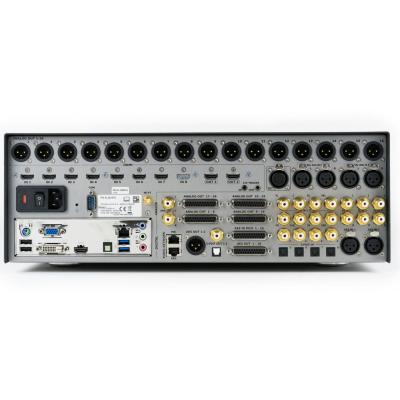

Altitude 32-8-16 HDMI 2.1 With ESS DAC, CODEC And Microphone

Since 2014, the Altitude32 preamplifier has become the best solution for luxury home theatres, thanks to its revolutionary hardware platform that integrates the latest immersive audio technologies.

The pure, uncompromised implementation of 3D Codecs, made possible through their own software, enables delivery of the full specifications and channel count of both Dolby Atmos and DTS:X Pro years ahead of the competition.

Altitude owners enjoy a unique feature available on no other product - The Dolby Atmos Object Viewer provides the user with a real-time view of the location and movement of sound objects in 3D space for all Atmos content.

+4 CHANNELS :- This feature increases the capacity of each Altitude32 model by extra discrete channel decoding and Optimization.
By enabling the use of 4x AES/EBU outputs in addition to the analogue outputs, Trinnov further unleashed the potential of the Altitude32.
This update comes free of charge to all Altitude32 owners who can now add extra subwoofers or channels to their system to increase its performance.


WaveForming completely redefines low-frequency reproduction in home cinemas: a new algorithm combined with home theatre design guidelines and recommended practices to deliver an unprecedented level of performance and an entirely new bass experience, free of room modes.
The development of this new ground-breaking innovation from Trinnov Audio started more than 6 years ago and truly sets a new reference in low-frequency reproduction.


• Trinnov is the only manufacturer that doesn’t rely on third-party DSPs in order to support the latest 3D audio formats.
• Software-oriented updates are provided over internet, no DSP upgrade required.
• Supports any 3D speaker configuration regardless of formats and decodes up to 32 discrete channels in Dolby Atmos.
• Exclusive, easy-to-use 3D Speaker Configuration tool.• Revolutionary, PC-based hardware platform.
• Future-proof, fully upgradable and scalable audio processor.
• ESS Sabre high-performance AD/DA converters, used daily by the most demanding mastering studios.
• 64 bits floating point and 24 bits / 192 kHz native processing.
• Ethernet Audio Multi Link output: ready for networked audio.
• Universal Spatial Accurate Audio playback with Trinnov’s patented 3D Loudspeaker Remapping.
• Exclusive Trinnov 3D measurement microphone and 3D Speaker/Room calibration tools.
• Optimized frequency and phase response for all speakers and subwoofers.
• Advanced bass management for 0 to 32 subwoofers.
• Automatic calibration of 2-way, 3-way, or 4-way Active Crossovers.
• HDMI 2.1 - 8 In 2 Out with e-ARC
• User-friendly web-based interface from any wireless device (tablet, laptop, or desktop computer).
• Built-in Gigabit Ethernet and WiFi.
• Automation via Telnet (Ethernet) or RS232 protocols
• Modules: AMX, Control4, Crestron, RTI, Savant.
• ROON ready
• Infrared remote control included

Download the Trinnov RTI Driver here - https://drive.google.com/drive/folders/1kLhWkaJkZQnr_T3QN9CESOiK1oalBcZ9
